The Strategic Importance of RVSM Verification

Operating safely within modern RVSM airspace corridors requires absolute precision from an airframe’s altimetry setup. Because aircraft are separated vertically by just 1,000 feet, any calibration drift or error within the instrumentation loop could impair air traffic safety.

The Druck ADTS 405F provides maintenance engineers with absolute validation certainty. Driven by Druck’s advanced internal transducer architecture, the system accurately simulates variable high-altitude atmospheric metrics and high-speed airflows with exceptional repeatability. This capability allows workshops to effortlessly meet the strict audit baselines set by civil and military aviation regulators worldwide, ensuring maximum fleet safety and regulatory compliance.

Core Product Features and Operational Strengths

1. Fully Integrated Pressure and Vacuum Supplies

Unlike standard rack-mounted systems that depend on separate workshop infrastructure, the Druck ADTS 405F is built as a self-contained unit. It incorporates high-efficiency internal military-spec pumps that deliver clean, rapid pneumatic pressure and vacuum directly to the test loops. This makes the entire setup highly mobile and perfectly suited for fast-paced operations right on the flight line.

2. Versatile Control Interface & Remote Functionality

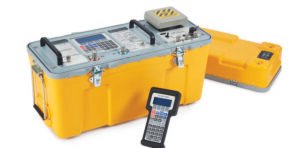

The front console features a brilliant, backlit LCD panel showing real-time text readings, paired with a heavy-duty tactical membrane keypad. For optimized workflow management, operators can utilize an optional rugged handheld remote control terminal. With this extension cable attached, a single technician can sit comfortably inside the aircraft cockpit to run complete instrument verification profiles, vastly improving field labor efficiency.

3. Comprehensive Aircraft Protection Framework

Accidentally over-pressurizing sensitive avionics can result in thousands of dollars in instrument damage. To prevent this, the Druck ADTS 405F incorporates automatic, software-driven Safety Limits. Technicians can configure maximum boundary thresholds for airspeed, mach numbers, and vertical speed rates based on the specific aircraft profile. If a baseline is crossed, the processor automatically intervenes to freeze or safely vent the loop. Additionally, in the event of an abrupt power failure, the system automatically protects the aircraft by safely venting the output ports to ambient ground conditions.

4. Advanced Test Program Management (TPM)

The unit supports optional Test Program Manager software, enabling technicians to write, store, and execute customized testing scripts directly through the system. By pre-loading targeted aircraft checking routines, the testing cycle becomes highly standardized, minimizing human setup errors and shortening the overall aircraft-on-ground (AOG) turnaround times.

Technical Performance Specifications

To provide engineering and quality assurance teams with the exact metrics required for asset onboarding, here is the performance breakdown for the Druck ADTS 405F:

• Flexible Scaling Factors: Measurements can be scaled in numerous units, including feet, meters, knots, km/hr, mph, mbar, inHg, psi, hPa, and kPa.

• Environmental Sealing: Built to MIL-PRF-28800 Class 2 standards, featuring a weatherproof shell when closed and a highly robust rainproof front panel interface during outdoor field operations.

• Power Parameters: Universal auto-selecting input matching 90-260 VAC at 47 to 440 Hz, adapting perfectly to hangar grid lines or 400 Hz aircraft ground power units.

Primary Applications in Hangar and Field Environments

The Druck ADTS 405F is an all-in-one system essential for an array of specialized flight support functions:

• Scheduled RVSM Recertification: Easily executes the standard 24-month pitot-static regulatory inspections needed to clear commercial or defense aircraft for high-altitude transport tracks.

• System Leak Rate Testing: Built-in precision timing functions allow engineers to accurately calculate micro-leak counts within internal airframe plumbing runs.

• Avionics Loop Diagnostics: Provides definitive fault isolation to help maintenance crews determine whether an air-data reading anomaly originates from external probe blockages, a faulty Air Data Computer (ADC), or structural piping damage.

Frequently Asked Questions (FAQ)

Can the Druck ADTS 405F be used for both civil transport and military jet testing?

Yes. Due to its wide airspeed envelope (up to 1,000 knots) and high altitude control capabilities, it is fully compatible with light aircraft, commercial wide-body airliners, helicopters, and high-performance military platforms.

What is the recommended calibration interval for the ADTS 405F?

To satisfy RVSM quality guidelines, a factory or accredited laboratory recalibration is highly recommended every 12 months using primary standards traceable directly to NIST.
