Advanced D-STAR Digital Communications in a Compact, Rugged Handheld!

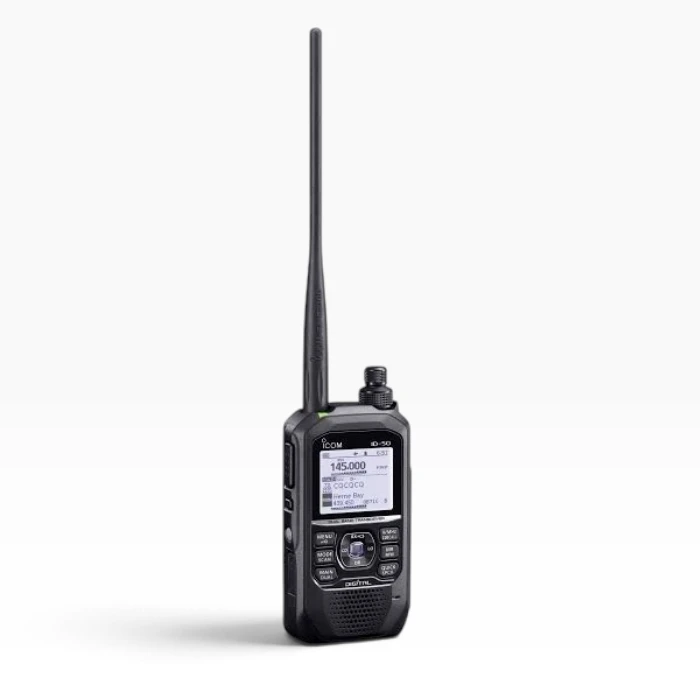

The Icom ID-50E is a compact VHF/UHF dual-band digital handheld transceiver designed for ham radio enthusiasts and emergency operators who require clear, worldwide communications. Integrating both classic FM analog operation and modern D-STAR digital capabilities, the ID-50E features an internal GPS receiver, USB Type-C charging, and robust IPX7 waterproofing.
Key Features & Benefits Icom ID-50E
-
D-STAR Digital & Analog FM Modes
Enjoy worldwide connectivity using D-STAR digital voice and data networks, or seamlessly switch to traditional analog FM operation.
-
DV Fast Data Mode
Transfer picture messages and data text files at double the speed of standard DV mode when paired with compatible Android or iOS software.
-
Integrated GPS Receiver
Utilize the internal GPS for automatic position reporting (D-PRS) and the built-in Near Repeater Search function to effortlessly locate local repeaters anywhere you travel.
-
Modern USB Type-C Port
Features a multi-functional USB Type-C port for convenient battery charging, serial communication, and easy programming.
-
IPX7 Submersible Waterproofing
Built to withstand harsh environments with IPX7 waterproof protection (submersible down to 1 meter for up to 30 minutes).
-
Dualwatch & MicroSD Memory Slot
Monitor two bands simultaneously (V/V, U/U, V/U) and record incoming audio, GPS logs, and channel memories onto an optional microSD card.
Technical Specifications Icom ID-50E
| Parameter | Specification |
| Frequency Range | VHF: 144 – 146 MHz / UHF: 430 – 440 MHz (European ‘E’ Version) |
| RF Output Power | 5.0 W / 2.5 W / 1.0 W / 0.5 W / 0.1 W |
| Operating Modes | DV (D-STAR Digital Voice), FM, FM-N |
| Memory Channels | 500 Regular Channels (100 Groups) |
| Waterproof Rating | IPX7 Waterproof Standard |
| Interface Ports | USB Type-C, MicroSD Card Slot, SP/MIC Jack |

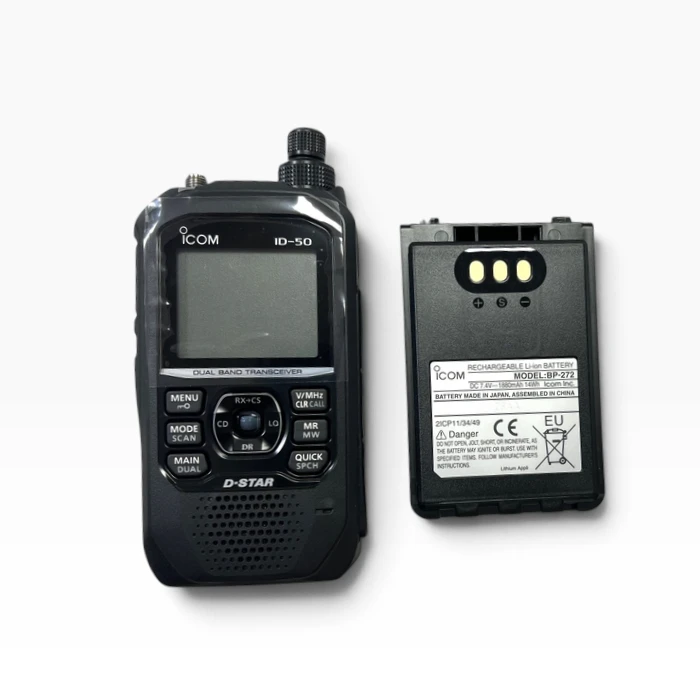

| Battery Type | Li-ion 7.2V 1880 mAh (BP-272) |
| Dimensions (W × H × D) | 58.0 × 111.0 × 30.0 mm (2.3 × 4.4 × 1.2 in) |
| Weight | Approx. 250 g (8.8 oz) with BP-272 & antenna |
Standard Package Contents
-
Icom ID-50E Transceiver Unit
-
BP-272 Li-ion Battery Pack (1880 mAh)
-
FA-S270C Dual Band Flexible Antenna
-
MB-127 Belt Clip
-
Hand Strap & User Manual
