Elevate Your Amateur Radio Experience to Professional Standards!

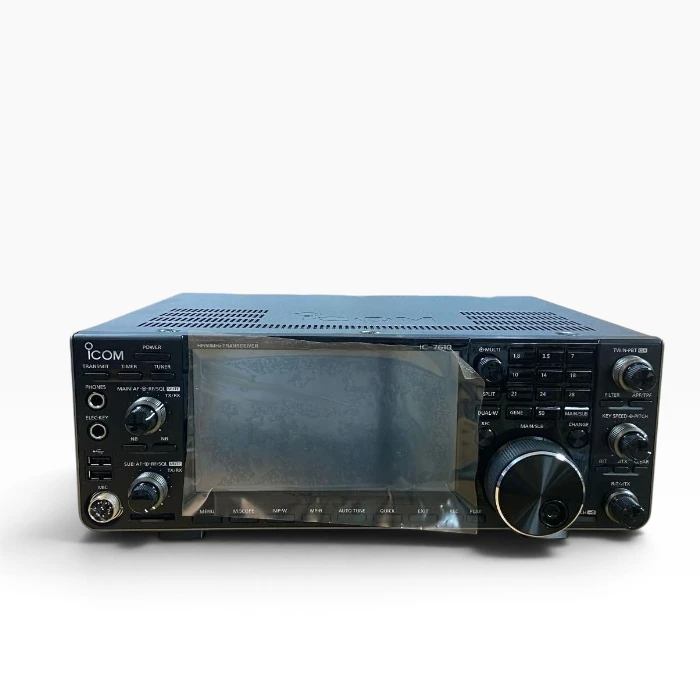

The Icom IC-7610 is a premium Direct Sampling SDR (Software Defined Radio) HF/50 MHz transceiver designed specifically for DXers, contest operators, and amateur radio enthusiasts who demand uncompromised performance. Featuring dual independent RF receivers and a large 7-inch color touchscreen, the IC-7610 sets a new benchmark in HF radio communication.
Features & Benefits Icom IC-7610
-
Advanced Direct Sampling SDR Architecture
RF signals are digitized directly via a high-speed Analog-to-Digital Converter (ADC) into an FPGA. This design delivers extremely low transmit phase noise and an impressive RMDR (Reciprocal Mixing Dynamic Range) of 110 dB, allowing you to pull faint signals out of the noise floor right next to strong adjacent signals.
-
Dual Independent Receivers
Equipped with two completely independent direct-sampling RF receivers (Main and Sub). Monitor two different bands and modes simultaneously without signal degradation or interference.
-
Automatic DIGI-SEL Preselectors
Both Main and Sub receivers feature integrated DIGI-SEL (Digital Tuning Selector) units. These preselectors automatically filter out strong out-of-band interference to prevent RF front-end overload.
-
High-Speed Spectrum Scope & Waterfall Display
The real-time high-speed spectrum scope and high-resolution waterfall display allow you to visually track band activity and locate weak signals effortlesly. Simply tap the screen to tune directly to a frequency (Touch-Screen Operation).
-
7-Inch Color Touchscreen & DVI-D Output
The vivid 7-inch TFT LCD touchscreen delivers intuitive menu navigation and crisp visual representation of operating parameters. Includes a built-in DVI-D port to connect an external monitor.
-
100W Output & Built-in Automatic Antenna Tuner
Delivers a stable 100W output on HF and 50 MHz bands, accompanied by a fast high-speed internal automatic antenna tuner with band memory.
Technical Specifications Icom IC-7610
| Parameter | Specification |
| Rx Frequency Range | 0.030 – 60.000 MHz |
| Tx Frequency Range | 1.800–1.999, 3.500–3.999, 5.255–5.405, 7.000–7.300, 10.100–10.150, 14.000–14.350, 18.068–18.168, 21.000–21.450, 24.890–24.990, 28.000–29.700, 50.000–54.000 MHz |
| Operating Modes | USB, LSB, CW, RTTY, PSK31/63, AM, FM |
| Output Power | 1–100W (SSB/CW/FM/RTTY/PSK), 1–25W (AM) |
| Memory Channels | 101 Channels (99 regular, 2 scan edges) |
| Receiver System | Direct Sampling SDR |
| RMDR | 110 dB (typical at 2 kHz separation) |
| Antenna Connectors | 2 × SO-239 (50 Ω unbalanced), 1 × BNC (RX Antenna In/Out) |
| Power Requirements | 13.8V DC ±15% (Max current draw: 23A at 100W) |
| Dimensions (W × H × D) | 340 × 118 × 277 mm (13.4 × 4.6 × 10.9 in) |
| Weight | Approx. 8.5 kg (18.7 lbs) |
What’s in the Box (Standard Accessories)
-
Icom IC-7610 Transceiver Unit
-
HM-219 Hand Microphone
-
DC Power Cable
-
Spare Fuses
-
Connectors & Plugs
-
User Manual
The Icom IC-7610 is the ultimate investment for your ham shack—delivering exceptional clarity, sensitivity, and control across all HF bands!
