So, the LeakShooter V3+ Pro made by Synergys Technologies is basically this super handy, high-tech gadget used in factories for maintenance. It’s like a smart camera that lets you “see” and hear air leaks, check steam traps, and spot electrical issues.

How It Works LEAKSHOOTER V3+ PRO

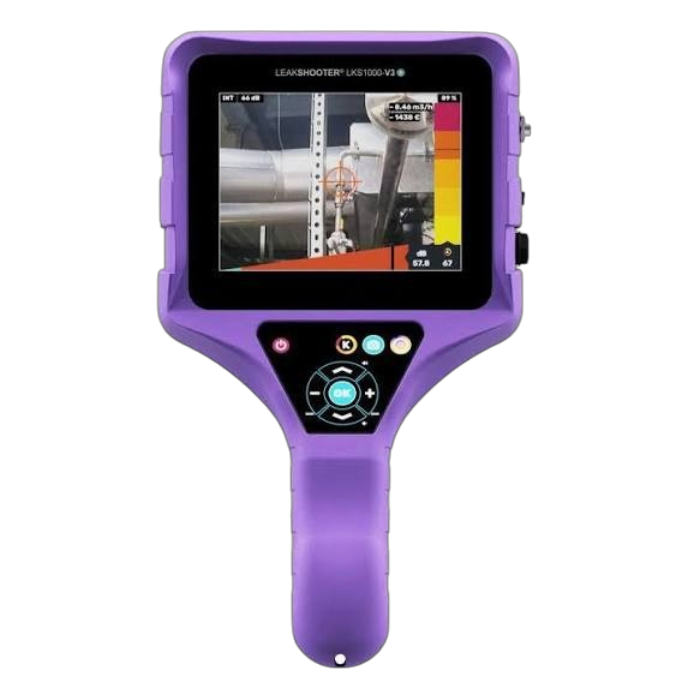

• See the Leaks: When gases or air escape under pressure, they make a high-frequency hiss that humans can’t hear. This tool catches that sound, and a little target pops up on its big 5.7-inch screen. As you get closer to the leak, the target turns from yellow to red and shrinks right down to the exact spot.

• Built-In Thermal Cam: It actually has a built-in thermal camera (using a FLIR sensor) right alongside the regular camera, which is awesome for checking things like pipe temperatures.

Features LEAKSHOOTER V3+ PRO

• Steam Trap Mode (StrapShooter+): It has a built-in program just for checking steam traps. It listens to the sounds and checks the temperatures (in and out) to tell you instantly if the trap is working fine, blocked, or leaking live steam.

• Does the Math for You: When you take a picture of a leak, it saves the sound level, figures out how much air is wasting away, calculates how much money that leak is costing your company per year, and gives it a severity score.

• What Else Can It Do? It’s not just for air and vacuum leaks. You can use it to check noisy mechanical bearings, spot electrical arcing or corona discharge, and test door or window seal tightness if you use the extra ultrasonic emitter.

• Easy Reports: It stores up to 1,000 pictures right on the device with timestamps, and you can easily plug it into a PC via USB to pull them off for your maintenance reports.

Frequently Asked Questions (FAQ)

1. How does this tool visually detect leaks? The LeakShooter V3+ Pro combines a regular internal camera with an ultrasonic sensor. It displays a dynamic target (crosshair) on the screen that changes color (from green to yellow, then red) and shrinks as you get closer to the center of a gas or air leak.

2. What is the purpose of the Thermal Imaging feature? The integrated thermal camera (160×120 resolution) is used to catch temperature anomalies. It’s super handy for:

• Spotting hotspots on electrical panels caused by bad components or partial discharges.

• Checking the temperature difference between the inlet and outlet of a steam trap to make sure the valve is working properly.

3. What does the built-in STRAPSHOOTER+ software do? It’s a specialized automatic diagnostic program just for testing steam traps. It walks you through measuring temperatures and decibel (dB) levels in real time, then gives you an instant verdict on whether the steam trap is OK, leaking, or blocked.

4. What is the maximum detection distance? It really depends on how big the leak is and the air/gas pressure. But for typical industrial setups, it can accurately spot leaks from a few meters up to over ten meters away—and it ignores background factory noise completely!

5. How do you create inspection reports? The unit can store up to 1,000 inspection photos. Each photo automatically saves the date, time, RMS dB level, temperature, estimated leak volume, and estimated financial loss. You can just plug it into a computer via a USB cable to pull the data for your formal reports.

6. What kinds of gases can the LEAKSHOOTER V3+ PRO detect? Instead of using chemical gas sensors, the LEAKSHOOTER V3+ PRO detects the ultrasonic waves created by gas friction as it forces its way through a leak. Because of this, it can detect any type of gas (compressed air, vacuum, oxygen, nitrogen, argon, helium, etc.).

Quick Specs Recap:

• Screen & Cameras: 5.7-inch color display with a 640×480 visual camera (plus built-in LEDs for dark spots) and a 160×120 thermal camera.

• Hearing Range: Listens around 40 kHz with adjustable volume/gain. Can spot a tiny 0.1 mm leak from up to 20 meters away at 3 bars of pressure!

• Battery: Runs for about 6 hours on a single charge using a built-in rechargeable battery.

What Comes in the Box?

It usually comes in a tough, rugged carrying case packed with:

• The LeakShooter V3+ Pro unit

• A good pair of professional headphones

• A charger and USB cable

• The manual and calibration papers (Plus, you can get extra add-ons like flexible probes, contact sensors, or acoustic cones if you need them).
