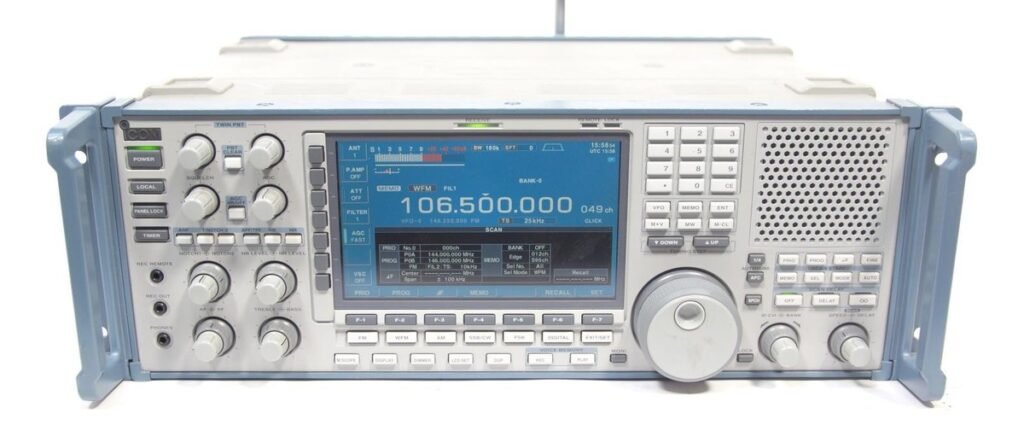

ICOM IC-R9500 Communications Receivers

If you are looking for the absolute peak of wideband monitoring technology, the ICOM IC-R9500 is the legendary desktop receiver you want sitting in your shack or testing facility. This isn’t just a standard commercial scanner; it is a heavy-duty, professional-grade communications receiver engineered for government agencies, signals intelligence specialists, and serious spectrum hobbyists who refuse to miss a single transmission.

Spanning an incredible frequency spectrum all the way from the longwave broadcast bands up to the highest microwave frequencies, the IC-R9500 handles everything effortlessly. By incorporating dual-conversion DSP architecture alongside a specialized high-performance oven-controlled crystal oscillator (OCXO), this receiver delivers unmatched frequency stability and ultra-clean signal reception. It effectively replaces a whole bench of separate SDR units and specialized monitors, providing an all-in-one, highly tactile command center for complete spectrum dominance.

Why the IC-R9500 Architecture Rules the Airwaves

The true secret behind the ICOM IC-R9500 incredible pulling power is its dual receiver design. ICOM didn’t take shortcuts here. For frequencies below 30 MHz, the unit utilizes a dedicated direct-sampling and double-conversion setup featuring a mechanical roofing filter array. This means that even if you have a massive, high-power shortwave broadcast station just down the road, the front-end tracking filters prevent overloading, allowing you to pull out weak, buried signals right next to the interference.

For frequencies above 30 MHz, a specialized multi-conversion tuner takes over, providing excellent image rejection and minimal internal noise generation. Whether you are tracking modern commercial aviation links, marine traffic, or specialized satellite telemetry, the IC R9500 price provides a flawlessly clean RF environment to guarantee absolute listening confidence.

Visual Spectrum Dominance with a Large TFT Display

Trying to find active signals in a busy RF band without a visual aid is like hunting in the dark. The IC9500 fixes this with a highly responsive, high-resolution color TFT display featuring an independent spectrum scope processor.

Unlike older receivers where the spectrum view pauses while audio is playing, the dedicated DSP engine on the ICOM IC-R9500 allows you to view real-time signal cascades and waterfalls while listening to a crystal-clear demodulated signal. You can instantly spot brief, intermittent transmissions, analyze bandwidth widths, and jump exactly to the center frequency with the massive, weighted main tuning dial.

Professional Instrumentation Functions Built-In

Beyond its world-class audio demodulation capabilities, the ICOM IC-R9500 doubles as a high-grade laboratory signal analyzer. It includes professional-tier metrics and data routing options that satisfy strict commercial and government auditing standards:

• Integrated Multi-Function Spectrum Scope: Offers adjustable sweep widths, attenuators, and peak-hold tracking modes for deep signal analysis.

• High-Resolution RSSI and S-Meter: Calibrated to deliver precise signal strength tracking down to the microvolt level.

• Voice Memory and Digital Recording: Built-in recording loops allow you to capture incoming audio clips directly to internal storage or an external CF card for forensic playback.

• Dual-Tone Preamplifiers: Advanced RF preamps let you toggle between low-noise signal boosting or high-intercept linearity modes depending on band conditions.

Technical Specifications Breakdown

To help your operational team cross-reference exact frequency and monitoring requirements, here are the core performance benchmarks for the ICOM IC-R9500 platform:

1. Frequency and Tuning Spectrum

• Frequency Range: Continuous coverage from 5 kHz up to 3.335 GHz (3,335 MHz)

• Frequency Stability: Better than ±0.05 ppm (utilizing the built-in 10 MHz OCXO master reference clock)

• Tuning Resolution: Ultra-fine 1 Hz minimum tuning step granularity

2. Receiver Demodulation Formats

• Analog Modes: USB, LSB, CW, AM, FM, WFM, FSK (RTTY)

• Digital Ready: Ready for external packet routing and digital mode integration via specialized I/O arrays

• Selectivity Filters: Fully adjustable twin digital IF filters spanning from 200 Hz for narrow CW up to 150 kHz for wideband FM tracking

3. Audio and Interface Connections

• Display Panel: 7-inch wide-view color TFT display grid

• Data Ports: USB ports, RS-232C serial control port, VGA external monitor out, and analog audio line outputs

• Antenna Inputs: Multiple selectable ports including a high-grade 50-Ω Type-N connector, 50-Ω SO-239 connector, and a dedicated high-impedance phono terminal for longwire HF antennas

Performance Matrix At-A-Glance

Frequently Asked Questions (FAQ)

Can the IC-R9500 be controlled remotely via a computer?

Yes, absolutely! The ICOM 9500 receiver features full ICOM CI-V command architecture alongside a standard RS-232C serial interface and USB ports. This allows you to integrate the unit into automated signal logging software, remote base station controls, or spectrum management networks easily.

What is the benefit of the built-in 10 MHz OCXO clock?

The Oven-Controlled Crystal Oscillator (OCXO) keeps the internal timing crystals at a constant heated temperature. This completely prevents frequency drift caused by ambient room temperature changes, which is critical when tracking narrow-band digital links or maintaining exact calibration parameters during prolonged monitoring sessions.
